Tongwei 575Wp Solar panels 17.8kw 31pc
€2.950 €2.450 excl. VAT
Description

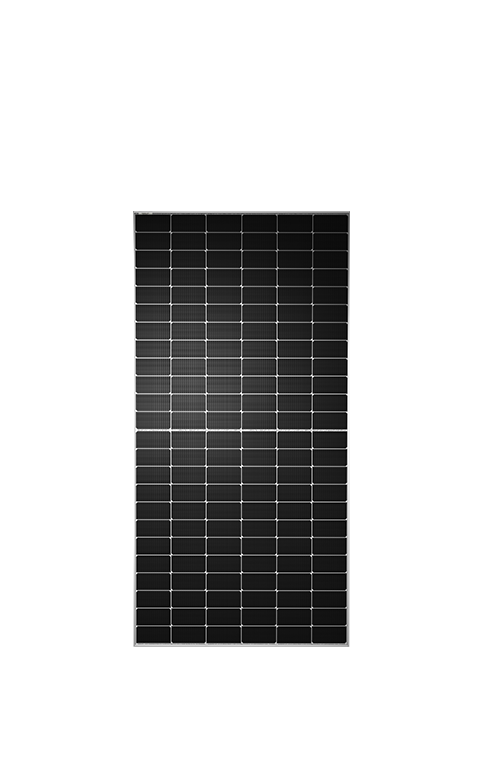

Tongwei TWMND-72HD575wp
Price for 1 pallet = 31x panels (17.8kw), exlc. VAT. Shipping costs additionally ca 350-450eur depending on your location in EU.
| Series Name | TWMND-72HD565-585 |
| Series Power Range (Wp) | 565-585 |
| Model Name | TWMND-72HD575 |
| Warranty Years | 15 |
| Primary (Years, % Output Power) | 25, 89.4 |
| Secondary (Years, % Output Power) | 30, 87.4 |
| Voltage at Maximum Power, Vmpp (V) At STC | 43.08 |
| Current at Maximum Power, Impp (A) At STC | 13.35 |
| Open Circuit Voltage, Voc (V) At STC | 51.44 |
| Short Circuit Current, Isc (A) At STC | 14.25 |
| Panel Efficiency (%) At STC | 22.3 |
| Temperature coefficient of Pmax (%/°C) | -0.3 |
| Temperature coefficient of Voc (%/°C) | -0.25 |
| Temperature coefficient of Isc (%/°C) | 0.046 |
| Maximum System Voltage (V) | 1500 |
| Series Fuse Rating (A) | 30 |
| Cell Number | 144 |
| Glass Type | high tranmittance, AR semi-tempered glass |
| Glass Thickness (mm) | 2 |
| Frame Type | Anodized Aluminum Alloy |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP68 |
| Cable Crosssection (mm²) | 4 |
| Cable Length (mm) | +400, -200, length can be customized |
Panel measurements
| Height (mm) | 2278 |
| Width (mm) | 1134 |
| Depth (mm) | 30 |
| Weight (kg) | 31.5 |
Brand
Brand
Tongwei
