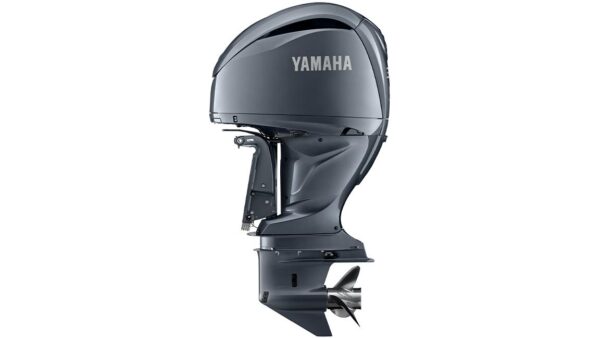

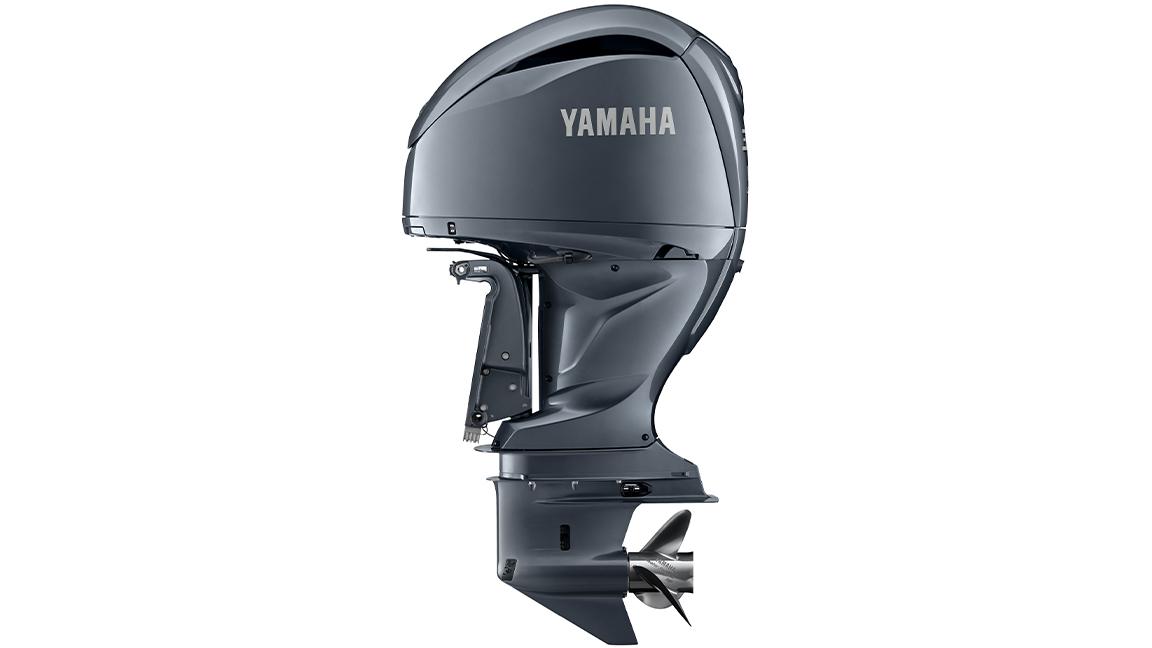

All new Yamaha F300XCB
The ultimate V6 powerhouse for heading offshore
The sleek, good-looking F300 represents the pinnacle of Yamaha’s latest-generation marine technology. Designed for the demanding offshore environment, this light, compact V6 engine is a great powerhouse to have behind you on your watersports adventures.
For clean, smooth and quiet performance, maximum fuel efficiency and easy starting, the advanced 24-valve DOHC engine features EFI (Electronic Fuel Injection) as well as VCT (Variable Camshaft Timing). Combining technology with style, the sleek, compact design speaks for itself.
Meanwhile, at the helm, Yamaha’s ‘drive-by-wire’ electronic throttle and shift delivers the smoothest, most precise control you’ll ever experience.
The V6 model incorporates Variable Camshaft Timing (VCT) technology as standard, for potent performance right across the power band, which adjusts the mixture of fuel and air in the cylinders perfectly. This means you get constant, heart-pumping torque all the way from zero to top speed.
At a glance
- Built-in Digital Electric Steering (DES) on Steer by Wire engines.
- Optional bolt-on electric steering for Engines not equipped with Steer by Wire (SBW) providing improved serviceability.
- TotalTiltâ„¢ function with integrated tilt limit for effortless trailering and convenience when tilting.
- Thrust Enhancing Reverse Exhaust (TERE) for outstanding reverse thrust and control when manoeuvring.
- Elegant, sleek, lightweight design.
- Superior engine mounts for less vibration and a softer ride.
- New and improved lower unit: new components, design features and improved durability.
Specs
Engine Type |
24-valve, DOHC, 60 deg. V6 |
Displacement [cm3] |
4169 |
Bore x Stroke [mm] |
96.0 x 96.0 |
Max. Prop Shaft Output [kW (ps)] @r/min |
220.6 (300)/5500 |
Fuel Induction System |
Fuel Injection |
Engine Transom Height[mm (inch)] |
X: 640 (25.2), U: 767 (30.2), E: 894 (35.2) |
Dry Weight [kg] * |
288-299 |
Starting System |
Electric Starter |
Controls |
Digital Electronic Control (DEC) |
Tilt System |
Power Trim & Tilt |
Lubrication System |
Wet Sump |
Digital Network |
Available |
