BYD Home Energy Storage System 46kWh

Name: BYD Home Energy Storage System 46kWh
SKU: 598
Price: 5400 EUR
Availability: InStock

Original price was: €7.600.Current price is: €5.400. excl. VAT

Category: Energy Tags: BYD, BYD blade, BYD home energy

Description

BYD Home Energy Storage System HV-46, 358.4V, 130Ah/46kWh.

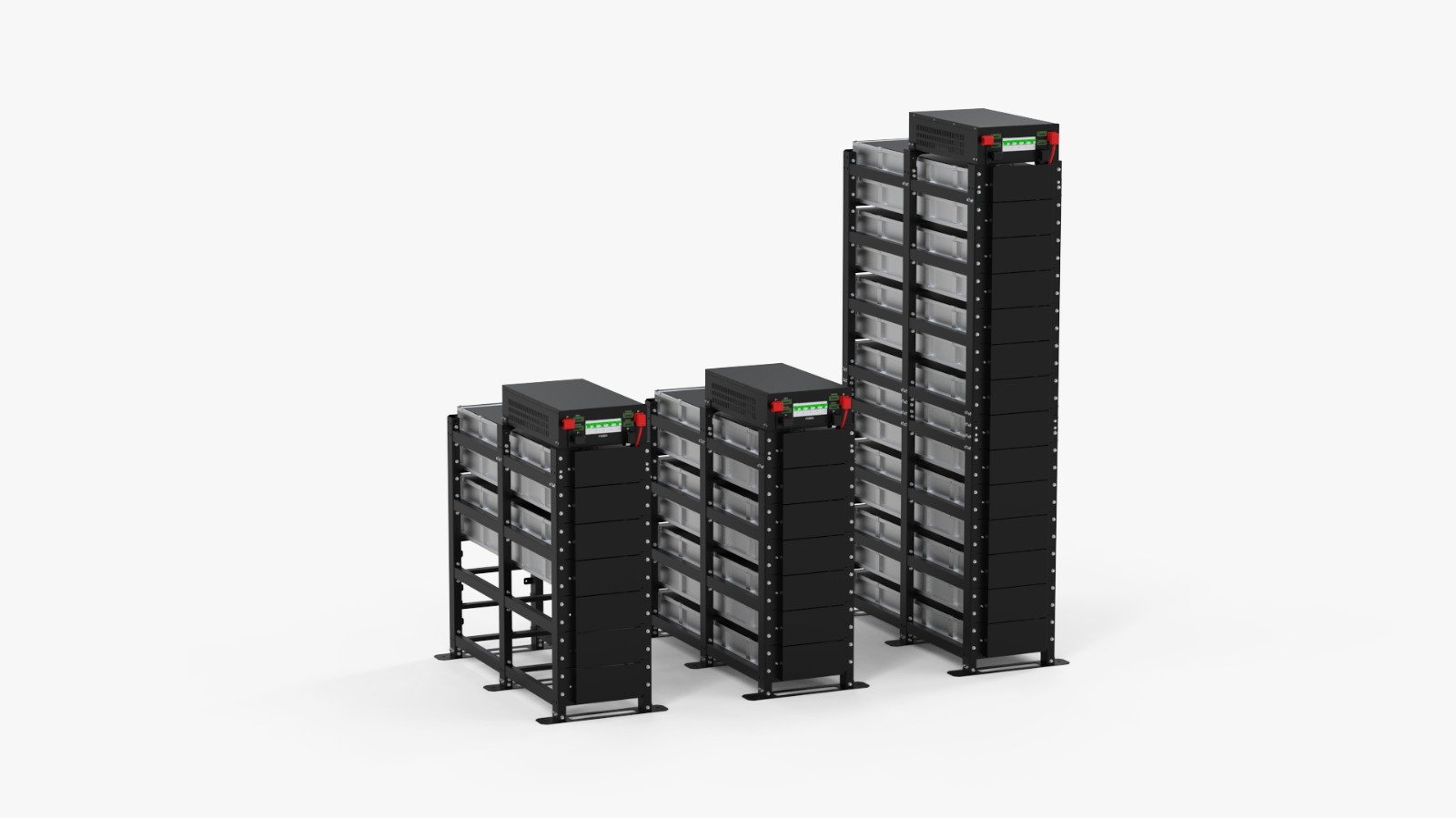

Storage systems from 33kwh-93kwh setups

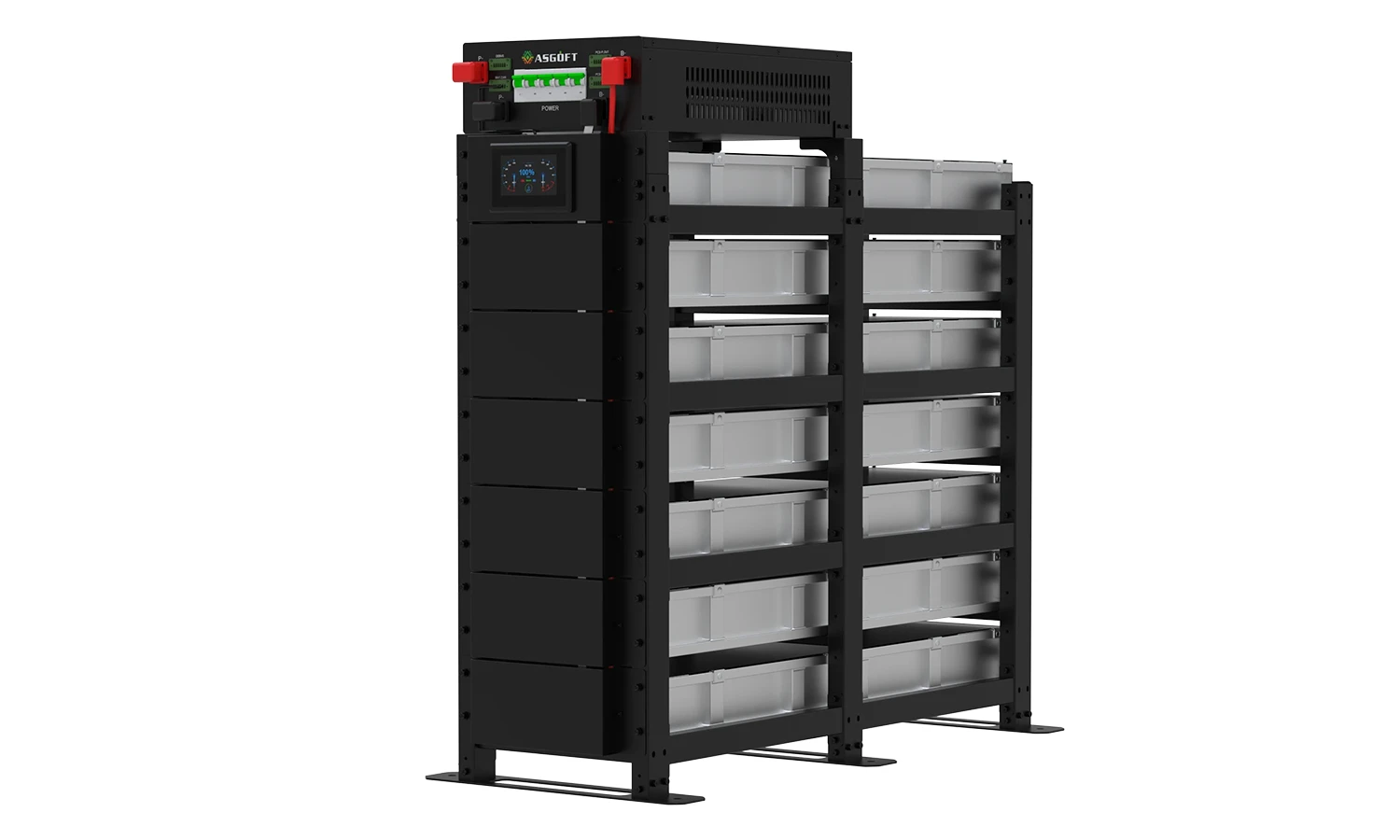

This 46KWH high voltage setup includes 7×6.6KWH battery modules +1x HV controller box + 1x rack frame

Reliable Protection.

Smart BMS for module balancing
Fire systems, cooling and heating adapts to -25~55℃

High-quality Battery.

BYD blade modules offer high security and high energy density.
BYD’s official blade battery: does not catch fire in the nail penetration test, ensuring safety and peace of mind.

Easy Installation and Expansion.

Flexible and easy assembly method, flexible capacity expansion from 31-109~545kWh.

Easy to install and use.

Plug-in embedded design modules, easy install and maintain
Perfectly matches DEYE’s 30kW, 40kW, 50kW high-voltage inverters and approved by DEYE

Rated Capacity	130Ah
Rated Cluster	16S1P
Nominal Voltage	204.8V~716.8V
Configuration	160S1P
Cycle Performance	≥6000
Factory Voltage	512V-530V
Max Discharging Current	100A
Max Discharging Current	100A
Opeartion Temperature Range	charge: 0~50℃ / Discharge: -20~55℃
Discharging Cut-off Voltage	169.6V~593.6VV

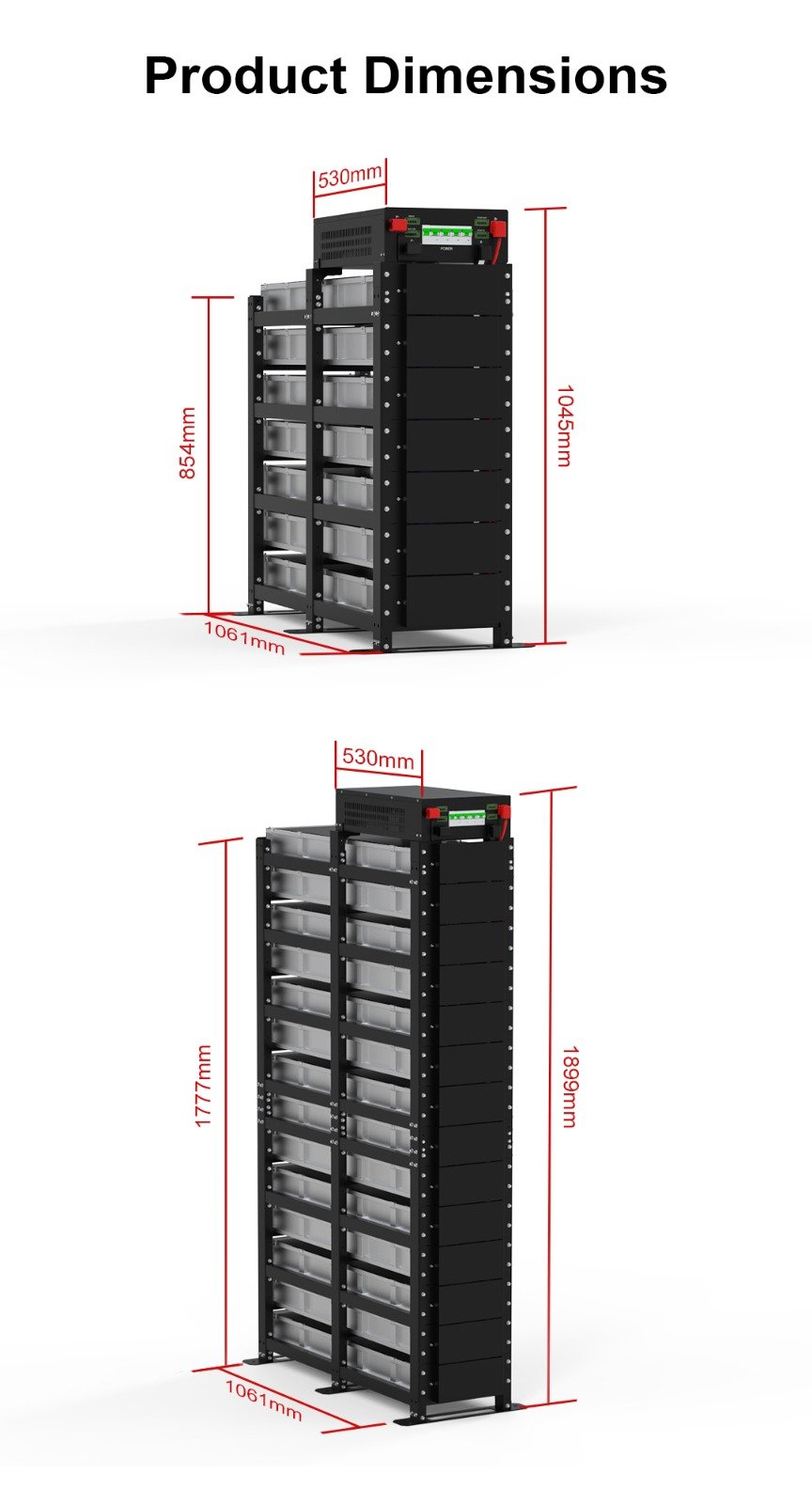

Module Size	10864601045/10864601899 mm
